Image transformations are used for fields where the source sends an image URL. Eofferix downloads the file, saves it in the user storage, and writes a link to the prepared file into the result.
Where to Find It
- Open the settings of the result field, node, or column.
- In Additional settings, enable Save file on the service.
- Enable File is an image when image processing is needed.
- In a UMI.CMS template, the block is called Transform images for UMI.CMS.

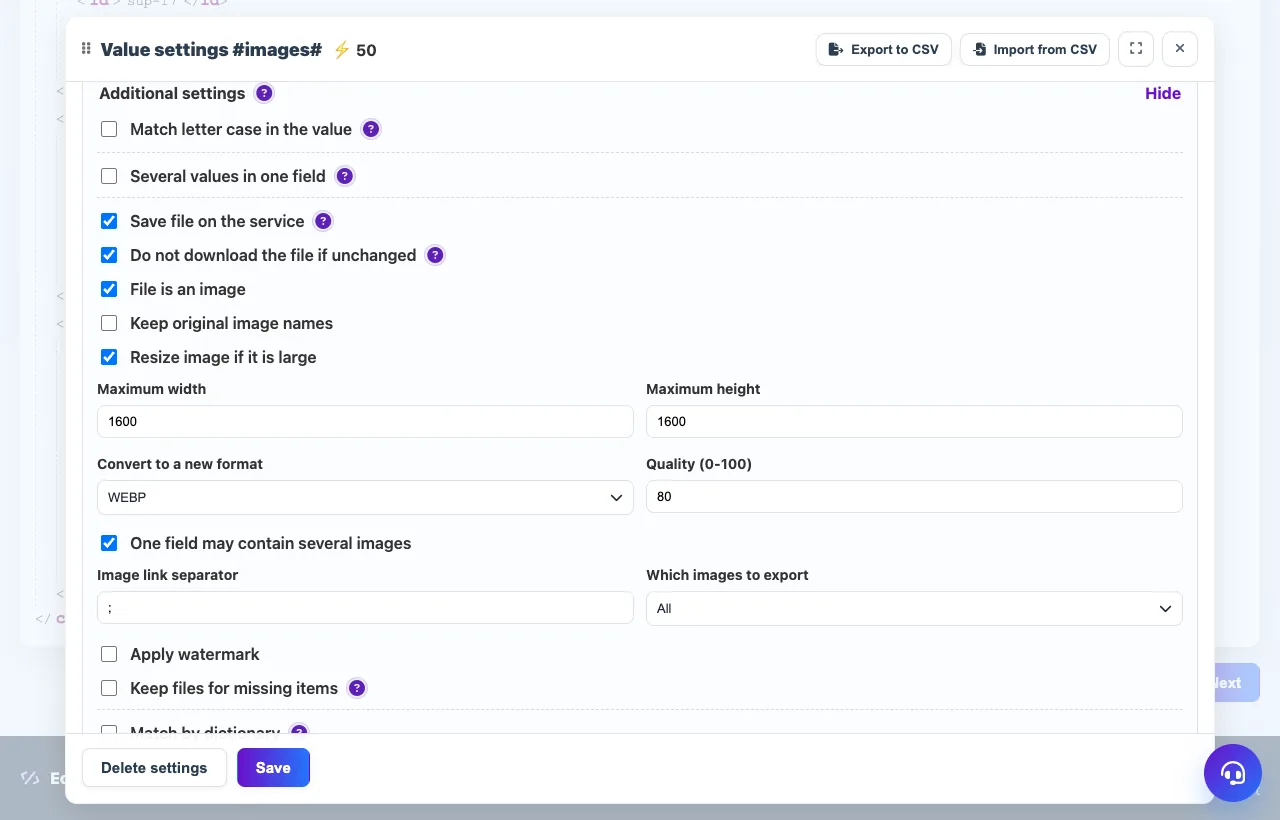

Available Settings
| Setting | What it does |
|---|---|
| Do not download the file if unchanged | On repeated runs, Eofferix can reuse an already prepared file. |
| Keep original image names | Keeps source filenames when they can be detected from the URL. |
| Keep files for missing items | By default, Eofferix deletes prepared files for items that disappeared from the new exchange. If this option is enabled, the files remain in storage. When the item appears again with the same link and processing settings, Eofferix reuses the old link and does not process the file again. Credits for repeated image processing are not charged in this case. |
| Resize large images | Limits maximum width and height while keeping proportions. |
| Convert to a new format | Prepares JPG, WEBP, or PNG instead of the source format. |
| Quality | Sets JPG and WEBP quality from 0 to 100. |
| Several images in one field | Splits several links stored in one value. |
| Apply watermark | Places a PNG or WEBP watermark over each saved image. |
Several Images in One Field
If one value contains several links, enable Several images in one field. Enter the link separator. If it is empty, Eofferix tries to detect a semicolon, line break, vertical bar, or comma.
In Which images to export, keep all images or choose a range, for example from 1 to 3.
Watermark
Use a transparent PNG or WEBP watermark. You can choose top-left, top-right, bottom-left, bottom-right, center, or tile. Maximum watermark size is set in pixels, opacity is from 0.05 to 0.50.
Processing Cost
Downloading, saving, resizing, conversion, and watermarking are counted in costs separately. Before launch, the profile shows a cost estimate including files and images.
